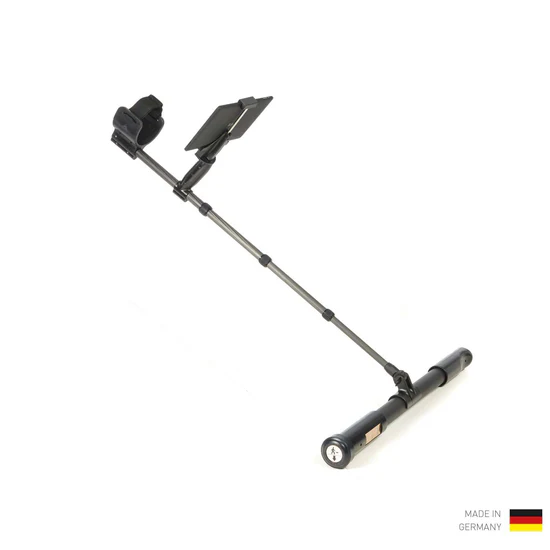

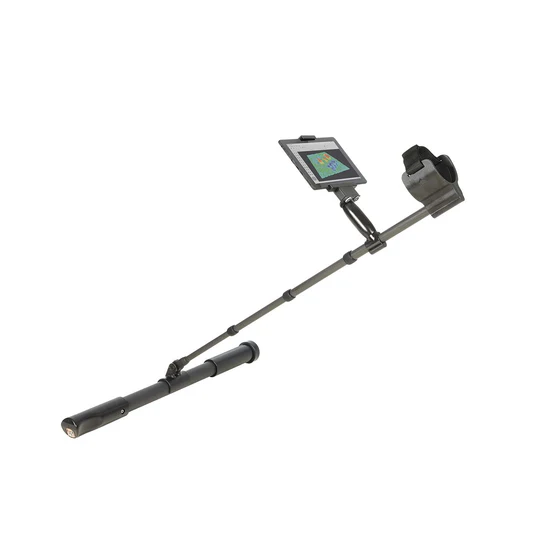

OKM Fusion Professional Plus
£16,190.00
- Compact: Detector for scans in vertical and horizontal orientation – supporting graphical 3D measurements, acoustic magnetic field measurements and instant live images
- Detection depth: With this technology customers found objects down to 21 m (69 ft) deep
- Use cases: Treasure hunting, cavity detection, archaology
- Operating modes: 3D Ground Scan, Live Sound (Magnetometer), Live Stream
- Detectable objects: Treasure chests, cavities, tunnels
Control Unit
- Dimensions (H x W x D): 950 mm, 65 / 80 mm
- Weight: approx. 1 kg
- Processor / Main CPU: Cortex M3, 32 MHz
- Processor / Slave CPU: Cortex M0, 24 MHz
- Sample rate: 1024 values / second
- Measurement resolution: 16 bit
- Operating temperature: –10°C – 60°C
- Storage temperature: –20°C – 70°C
- Audio: Bluetooth Headphones
- Waterproof: No
- Sensor technology / Coil technology: SCMI-15-D / SRIS-18K
- Operating time: approx. 12 hours (delivered power supply, full charged battery, 25°C)
- Air humidity: 5% – 75%
- Protection Type: IP40
- Input (for Charger): 19 V DC / 3.16 A
Data Transmission
- Technology: Bluetooth 5.1
- Frequency: 2.402 – 2.480 GHz
- Maximum Transfer Rate: 1 Mbps
- Maximum Transmitting Power: +8 dBm
- Maximum Range: approx. 10 m
Computer Minimum Requirements
- Interface (data transmission): USB 2.0
- Free disk space: minimum 250 MB
- Working memory (RAM): 2 GB
- Display: 1920 x 1080
- Processor: 1.2 GHz
- Graphics card: 1 GB RAM, OpenGL 3.3
- Operating system: Windows 10
The technical data are average values. Minor deviations are possible during operation.
