OKM eXp 6000 Professional Plus
£35,700.00
- All-inclusive: Detector for treasure hunters with highest demands – including all features
- Detection Depth: With this technology customers found objects down to 25 m (82 ft) deep
- Use Cases: Archaeology, Treasure Hunting, Natural Gold Prospecting, Cavity Detection
- Operating Modes: 3D Ground Scan, Magnetometer, Pinpointer, Mineral Scan, Tunnel Scan, Live Scan
- Detectable Objects: Treasure chests, voids, tombs, vessels, tunnels
3D Ground Scanner and Metal Detector for Highest Demands

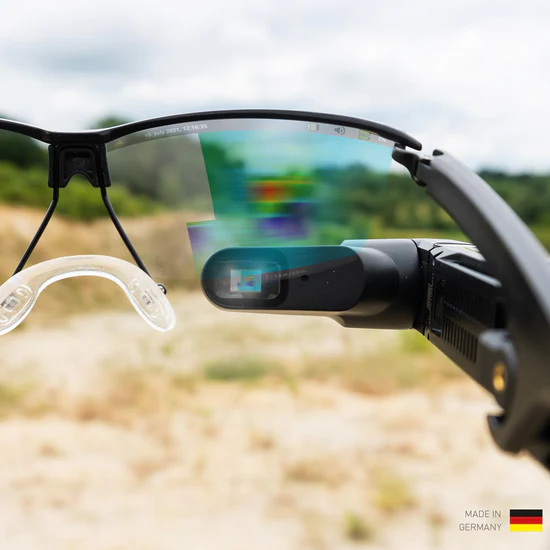

The eXp 6000 ground scanner and metal detector is one of OKM’s top of the line detecting tools for treasure hunters, metal detectorists, archaeologists, prospectors, gold seekers and ground surveyors. This detector is completely wireless and can be controlled via touchscreen, video eye glasses or notebook. It is the world’s first 3D ground scanner that utilizes the innovative OKM Telescopic Probe which can be extended to 124 cm (4 ft).

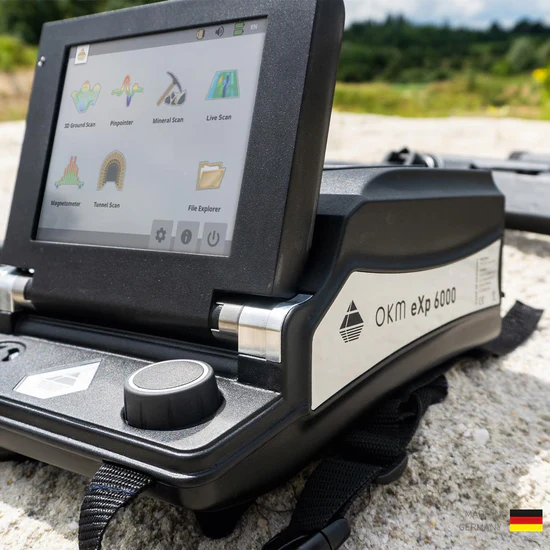

Color Display and Touchscreen
The Control Unit with touchscreen and multilingual graphical user interface (GUI) is very easy to use. Different layouts and automatic brightness control allow the user to efficiently operate the detector even in varying ambient light conditions.
Telescopic Rod with Removable GPS Receiver
The Telescopic Rod can be adjusted to the user's body size in just a few simple steps. Its armrest is equipped with additonal pads for more ergonomics during the treasure hunt. A protective cap is located on the handle, which can be replaced with the GPS Receiver included in the scope of delivery. At the lower end, the probes are quickly and easily mounted via a magnetic connector.
Control Unit
- Dimensions (H x W x D): 120 x 210 x 280 mm
- Weight: approx. 2.34 kg
- Voltage: 11.8 - 19 VDC, 50 W maximal
- Safety Class: IP40
- Operating Time (full charged, 25 °C): approx. 4 hours
- Operating Temperature: -10 °C – 50 °C
- Display: 6.5" Diagonal, 1024 x 768 Pixel TFT Color, 650 cd/qm
- Processing Unit: QuadCore AMD @ 2GHz, OpenGL4.2 HD Radeon GPU
- Working Memory (RAM): 4 GB Kingston HyperX
- Data Memory: 8 GB SDCard, Class 10
- Feedback: acoustic, visual
- Storage temperature: -20 °C – 60 °C
- Air humidity: 5 % – 75 %
- Waterproof: No
- Data Transmission Technology: WiFi 802.11n a/b/g, MIMO 2x2
- Data Transmission Rate: 11 Mbps – 54 Mbps
- Operation Distance (line of sight to telescopic rod): max. 4 m
Telescopic Rod
- Dimensions (H x W x L): 210 x 135 x 680 - 1340 mm
- Weight: about 1,76 kg
- Voltage: 11.8 - 19 VDC, 22 W maximal
- Safety Class: IP40
- Operating Time (full charged, 25 °C): approx. 5 hours
- Operating Temperature: -10 °C – 50 °C
- Processing Unit: ARM Cortex M0+ @ 48 MHz
- Working Memory (RAM): 32 KB
- Data Memory: 256 KB
- Storage temperature: -20 °C – 60 °C
- Air humidity: 5 % – 75 %
- Waterproof: No
- Data Transmission Technology: WiFi 802.11n a/b/g
- Data Transmission Rate: 11 Mbps – 54 Mbps
- Operation Distance: (line of sight to control unit): max. 4 m
Super Sensor
- Length: 950 mm
- Weight: approx. 1.0 kg
- Receiver: Dual / Hi-Gain – Vertical – Geophysical Phase Reader – EMSR
- Sensor technology: SCMI-15-D
Telescopic Probe
- Length: 820 - 1240 mm
- Weight: approx. 1.04 kg
- Receiver: Dual Geophysical Phase Reader – EMSR
- Sensor technology: SCMI-15-D
Tunnel Sensor
- Length: 500 mm
- Weight: approx. 0.76 kg
- Receiver: Dual Geophysical Phase Reader – EMSR
- Sensor technology: SCMI-15-D

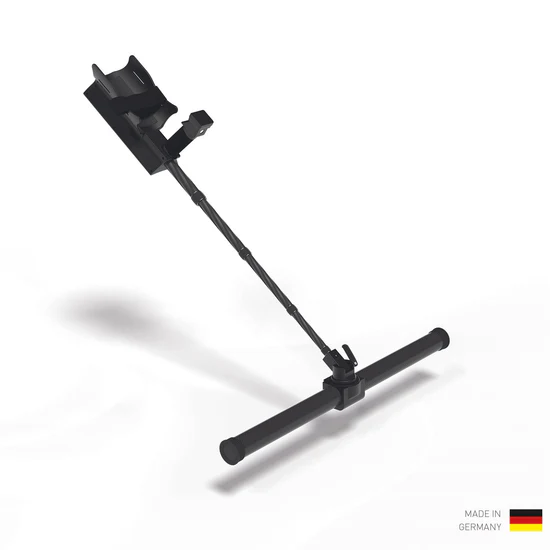

Live-Stream Sensor
- Length: 600 mm
- Weight: approx 0.92 kg
- Receiver: Hexa Geophysical Phase Reader – EMSR
- Sensor technology: SCMI-15-D
GPS Receiver
- Dimensions (L x W x H): 50 x 55 x 27 mm
- Weight: about 60 g
- Input voltage: 5 V DC
- Input current (maximum): 450 mA
- Input current (typical): 50 mA
- Refresh rate: 1 s
- Cold start: ＜40 s
- Warm start: ＜30 s
- Horizontal Position Accuracy (most cases, outdoor): 2,7 m
- Horizontal Position Accuracy (free view, clear sky): 0,9 m
The technical data are average values. Minor deviations are possible during operation.
