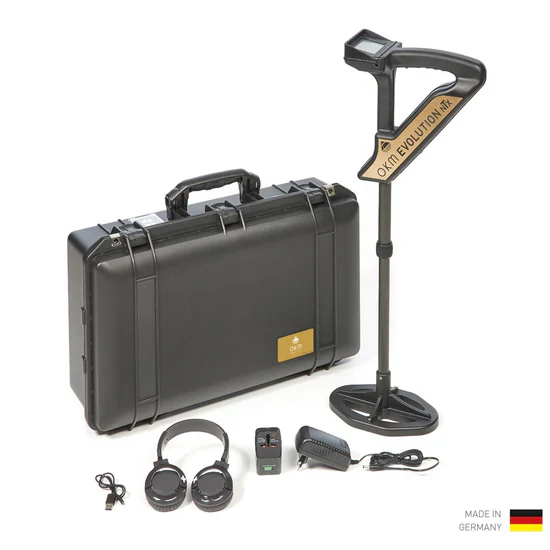

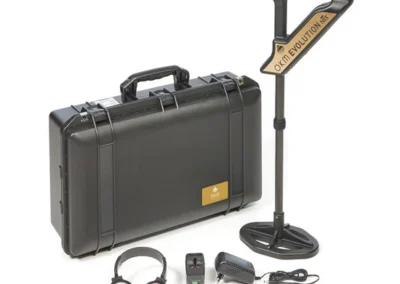

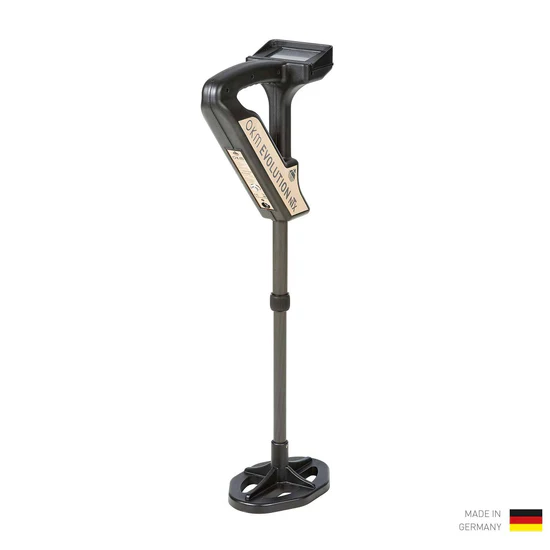

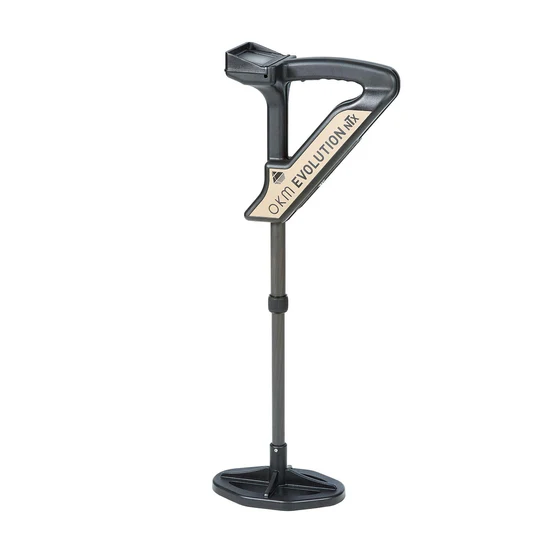

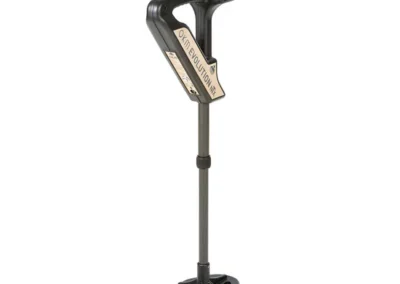

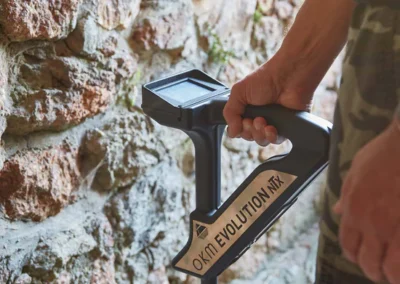

OKM Evolution NTX

3D Metal Detector for Treasure Hunters and Gold Seekers

The metal detector and 3D ground scanner Evolution NTX can be used by treasure hunters, gold seekers, metal detectorists and archaeologists who are looking for buried objects, hidden artifacts or other lost items like:

• Lost valuables (rings, coins, jewelries, wedding bands)
• Buried treasures and artifacts
• Ancient boxes, chests, chambers and sepulchers

Unlike other metal detectors, the Evolution NTX can process graphical 3D images of underground treasure hoards and detected anomalies. Thus, you can determine size and depth of potential finds before digging. The deep penetration capability is just another advantage of our 3D ground scanner. Many great treasure finds prove the potential of our metal detecting technology made in Germany.

Control unit

• Dimensions (H x W x D): 540–810 x 150 x 280 mm
• Weight: approx. 1.5 kg
• Input voltage (max.): 19 V DC, 3.16 A, 60 W
• Processor / Main CPU: Cortex M3, 32 MHz
• Processor / Slave CPU: Cortex M0, 24 MHz
• Display: 3.5” Resistive touch, 480 x 320 Pixel
• Display CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sample rate: 1024 values / second
• Measurement resolution: 16 bit
• Operating temperature: –10°C – 60°C
• Storage temperature: –20°C – 70°C
• Audio: Internal speaker / Bluetooth
• Waterproof: No
• Technology: GST / EMSR
• Sensor technology / Coil technology: SCMI-15-D / VLF
• Air humidity: 5% – 75%

Data Transmission

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum Transfer Rate: 1 Mbps
• Maximum Transmitting Power: +8 dBm
• Maximum Range: approx. 10 m

Computer Minimum Requirements

• Interface (data transmission): USB 2.0
• Free disk space: minimum 250 MB
• Working memory (RAM): 2 GB
• Display: 1920 x 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10

The technical data are average values. Minor deviations are possible during operation.
